Exploration Drill Rigs
C100 Series drill rigs are designded for limited undergroungd operations. 4 workers can remove C100 easily. C100 has a capability to drill 360 degrees.
Drilling capacitiy:
A size: 100 m
Engine power: 15 or 22 kW
RPM: 550-2000
Torque: 260Nm
Feed stroke. 850 mm
Max pull capacity: 15 kN
Max thrust force: 20 kN
C400 Series drill rigs has a capability to drill 360 degrees in underground. Rotation unit and rod clamp is working as syncronised. For mobilisation there is a crawler option.
Drilling capacitiy:
N size: 400 m
B size: 600 m
A size: 800 m
Engine power: 45 or 55 or 90 kW
RPM: 50-1000
Torque: 1366 Nm
Feed stroke. 900 or 1800 or 3300 mm
Max pull capacity: 64 kN
Max thrust force: 64 kN
C600 Series drill rigs are the most powerfull underground drill rigs of our range. Their rotation unit has a capacity to work with H size. C600 can drill 360 degrees in underground. Rotation unit and rod clamp is working as syncronised. For mobilisation there is a crawler option. Crawler can be powered by independent diesel engine.
Drilling capacitiy:
H size: 500 m
N size: 750 m
B size: 1000 m
Engine power: 90 kW
Independent diesei engine for crawler: 22 kw (OIptional)
RPM: 25-1300
Torque: 1800 Nm
Feed stroke. 850 or 1800 mm
Max pull capacity: 85 kN
Max thrust force: 85 kN
C1000 Series drill rigs are designed for tough conditions on surface. Designed for powerfull and safe drilling. P size can pass through from the rotation unit. C1000 has a hydraulic telescopic mast.
Drilling capacitiy:
P size: 375 m
H size: 700 m
N size: 1000 m
B size: 1540 m
Engine power: 153-194 kW
RPM: 122-1250
Torque: 383-5322 Nm
Feed stroke. 3350 mm
Max pull capacity: 167,7 kN
Max thrust force: 88,4 kN
C1500 Series drill rigs are the most powerfull surface drill rigs of our range. Designed for tough conditions on surface. Designed for powerfull and safe drilling. P size can pass through from the rotation unit. C1500 has a hydraulic telescopic mast.
Drilling capacitiy:
P size: 900 m
H size: 1500 m
N size: 2300 m
B size: 2900 m
Engine power: 153-194 kW
RPM: 122-1250
Torque: 383-5322 Nm
Feed stroke. 3350 mm
Max pull capacity: 213,7 kN
Max thrust force: 108,4 kN

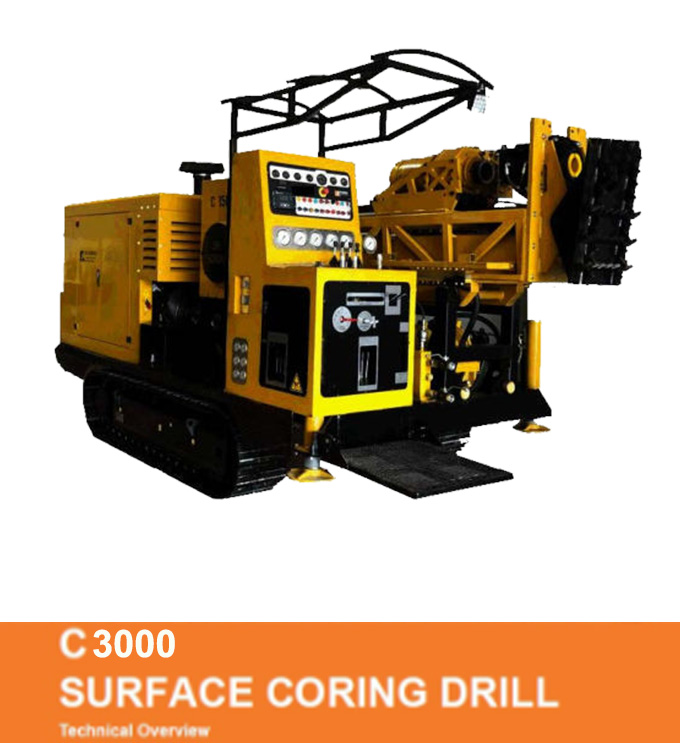

It has the highest drilling capacity. The tower of the C3000, which has a telescopic tower, is taller than the C1500. In this way, it has the feature of pulling the 9m rod with a crane in one go. P size can pass through from the rotation unit.
Drilling capacitiy:
P size: 1300 m
H size: 2250 m
N size: 3000 m
B size: 3450 m
Engine power: 205-235 kW
RPM: 122-1250
Torque: 383-5322 Nm
Feed stroke. 3350 mm
Max pull capacity: 213,7 kN
Max thrust force: 108,4 kN
